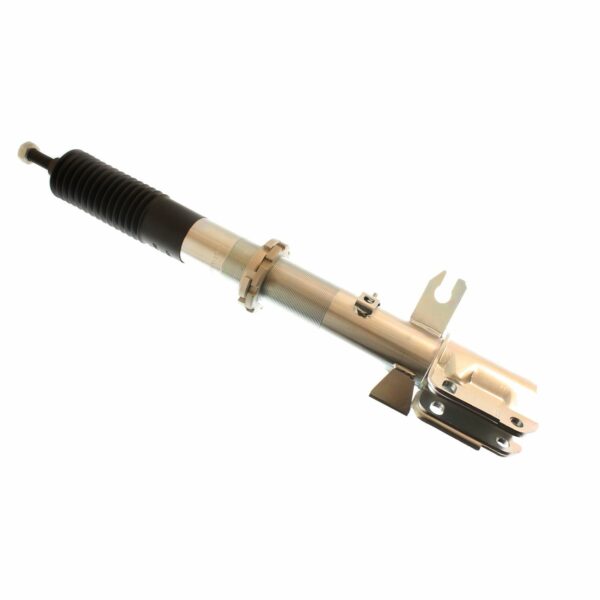

Bilstein Shock Absorbers

Description

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Additional Attributes:

GTIN: 00651860501567
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Diameter (ID): 46mm
Body Material: Steel
Boot Included: Black Bellows
California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Collapsed Length (IN): 16.61
Collapsed Length (MM): 422.0
Compression @0.26m/s: 1440
Extended Length (IN): 20.53
Extended Length (MM): 521.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Bracket
PartType: Shocks / Struts
Piston Type: Digressive
Position: Front
Prop 65 Y/N: Y
Rebound @0.26m/s: 5370
Segment: Motorsports
Series: Motorsports
Spring Seat Included: Yes
Upper Mount Type: Stem
Valving Identifier: N/A

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 6.1000 x 6.1000 inches
Weight: 10.2700 PG

PDF:

USA SDS_Shock_Air Spring_V2_EN

Generic_instructions_02
